Concrete Design · Verification

Check the model.
Trace the results.

A collection of reference problems for checking concreteJS against published concrete section analyses.

Each problem brings together the source, section assumptions, and a saved model you can open in the application.

Reference library

Verification problems

2 problems

Comparison available

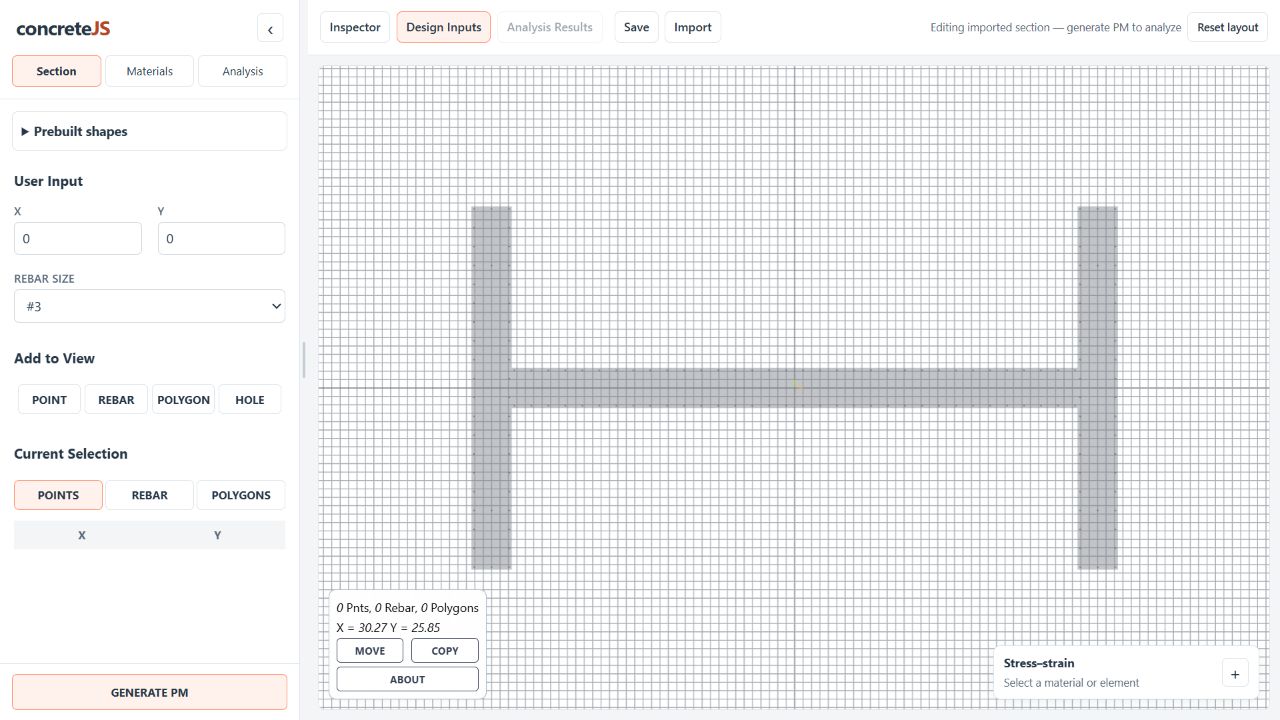

An spColumn reference example for axial force and bending in an I-shaped reinforced concrete wall.

Reference: StructurePoint — spColumn v10.10

View problem

Comparison available

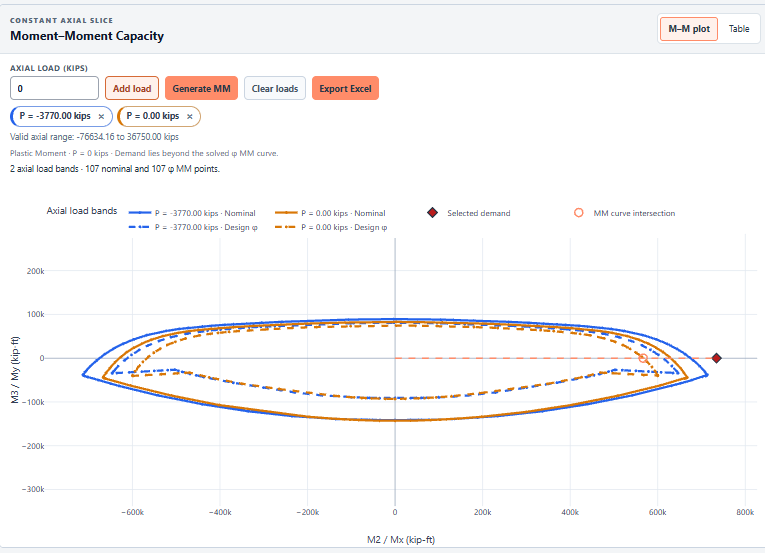

An AISC SpeedCore worked example compared at a fixed axial load in Mx–My space.

Reference: AISC Design Guide 37 — SpeedCore Example 3-2

View problem

How to use this library

Review the source
Check the problem description and the assumptions recorded for the saved model.
Open the problem
Load the model in Concrete Design to inspect the geometry, reinforcement, and analysis settings.
Review the comparison
Overlay the results, compare control points, and read the notes describing the assumptions and differences.
